PRODUCT
Near-infared

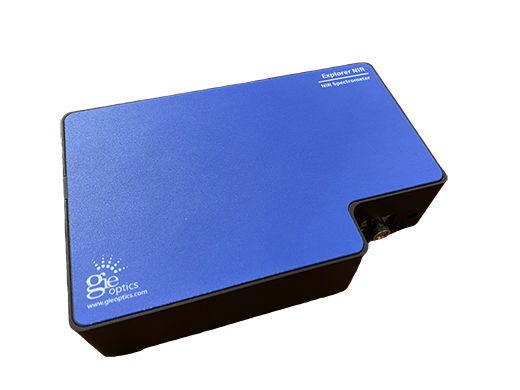

Explorer NIR
128 pixels of InGaAs detector
Specification
▶Range:900-1700nm
▶Resolution:~10nm
▶Integration: 0.1ms- 65s
▶CCD: 128×1 pixel, 25×250um
▶Power supply: DC 5V
▶ADC: 16 bits
▶Interface:SM905
▶USB: Type-B or UART
| Product Description | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| The Explorer NIR near-infrared spectrometer adopts a compact optical path and structure design and replaceable slits to make the volume smaller, and different slits can be installed according to the customer's choice to determine the appropriate optical resolution. Suitable for different applications of customers. The Hamamatsu high-performance near-infrared sensor is used inside the spectrometer, which has high signal-to-noise ratio and low energy consumption. The Explorer NIR near-infrared spectrometer has a spectral range of 950nm-1700nm, which is very suitable for food testing, biopharmaceuticals and life sciences, and is also very suitable for system integration for secondary development. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Application areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Food and Agriculture: Freshness and sugar testing of fruits and
vegetables; fat and protein content testing of meat; component analysis of oil crops such as grain and seed quality analysis, life sciences and pharmaceuticals, pharmaceutical component analysis and process monitoring of plastic products production process Ingredient analysis, material screening and quality control, etc. Due to the compact optical path and structure design, Hamamatsu uncooled InGaAs detector, Explorer NIR spectrometers have extremely low power consumption, small size and low price, and 950nm-1700nm spectral detection, the scope is very suitable for food sorting, biopharmaceuticals and life sciences , as well as system integration. Explorer NIR adopts a replaceable slit design, a spectrometer can be configured with a variety of slits of different widths to meet the spectrum measurement needs of different resolutions and sensitivities, expanding the application requirements. Explorer NIR requires only a 5V DC power supply and can be powered directly from the USB, making it easy to integrate. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Features: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Selectable wavelength range and optical resolution, according to
the actual application requirements of customers, configure the appropriate
grating, configure the appropriate measurement wavelength range and optical
resolution; provide professional and intuitive operation software, provide
transmittance, absorption, and reflectivity and time monitoring
functions. The use of uncooled InGaAs detector and compact optical path and structure design make Explorer NIR have extremely low power consumption and small size, which is convenient for system integration and outdoor measurement. The interchangeable slit design makes Explorer NIR can be configured with a variety of slits with different widths, and can flexibly switch between different resolutions and sensitivities. Selectable wavelength range and resolution, according to customer's actual application needs, configure professional grating, configure reasonable measurement wavelength range and resolution. Professional test software, providing a variety of professional measurement modules such as absorbance, transmittance, concentration and reflectance.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
